Model

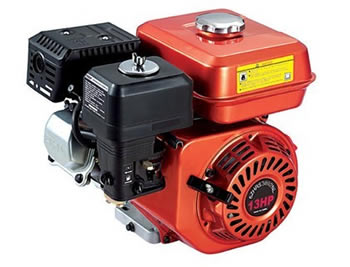

W188F(13HP)

Type

Air-cooled, 4 stroke, single cylinder

Bore×Stroke

88×64mm

Displacement

389cc

Compression Ratio

8:1

Rate Power

8.3kva/3000rpm 8.5kva/3600rpm

Max.Power

9.6kva/3600rpm

Max.Torque

26.5N.m/2500rpm

Ignition System

Non-contact transistorized ignition(TCI)

Fuel tank capacity

6.5L

Fuel consumption

≤374g/kW·h

Engine Oil Capacity

1.1L

Start Mode

Recoil and hand-operated

Packing Dimension L×W×H

550×485×525mm

Net Weight

30kg

Gross Weight

32kg

Fuel Tank

with

Muffler

with

Per 20' GP CNT

192sets

Per 40' GP CNT

384sets/480sets-40HQ
